Sub-base · supplied & installed

Drainage cells in Singapore

VersiCell® drainage cells form the engineered void beneath an artificial lawn, roof garden or planter, channelling tropical downpours away in seconds, holding the surface dead-level, and protecting the waterproofing below. High-strength, lightweight and made from recycled plastics.

What it is Features & specs Applications FAQ

VersiCell drainage cells beneath artificial grass, cross-section

What it is

The void that keeps water moving

Interlocking cells create a continuous drainage void under the turf or soil. Water drops through, runs along the void to the outlets, and the surface stays level and usable, even after the heaviest storm. On hard surfaces this layer is what makes artificial grass work on slabs, balconies and roof gardens.

80 t/m² strength Rapid drainage Roof-deck rated Protects waterproofing

VersiCell® drainage cells

Features & specifications.

Get an indicative quote

Compressive strength over 80 t/m², yet light enough to carry and lay by hand.
High surface area and internal void volume for efficient water capture and discharge.
Interlocks in one plane and at right angles, or simply butts together, fast, flexible layouts.
Resistant to biological attack and a wide range of soil-borne chemicals.
Narrow profile allows greater soil depth in planters and relieves hydrostatic pressure on retaining walls.
Moulded from recycled plastics and available in several height profiles.

80 t/m²Compressive strength, withstands wheelbarrows and Bobcats

Applications

Green roofsPlanter boxesPlaza decksBalconiesPool areasSports fieldsRetaining wallsPond filtrationGolf courses

Technical specifications

VersiCell® 3050 & 2050

Size: 500 mm × 500 mm *
Height: VersiCell® 305030 mmVersiCell® 205020 mm
Weight: VersiCell® 3050≈ 2.5 kg/m²VersiCell® 2050≈ 2 kg/m²
Material: Polypropylene
Colour: Black
Compressive strength: min. 800 kN/m² (≈ 80 t/m²)
Discharge capacity @ 1% gradient: VersiCell® 3050> 16.5 l/m·sVersiCell® 2050> 13.0 l/m·s
Surface void area: > 62%
Internal void area: > 95%
Biological / chemical resistance: Unaffected by moulds and algae. Resistant to oils, acids, alkalis and bitumen.

* Nominal panel size; profiles interlock or butt together on site.

How it’s laid

The drainage cells in place.

VersiCell goes down in three simple stages, water drains through the cells while the surface above stays perfectly level.

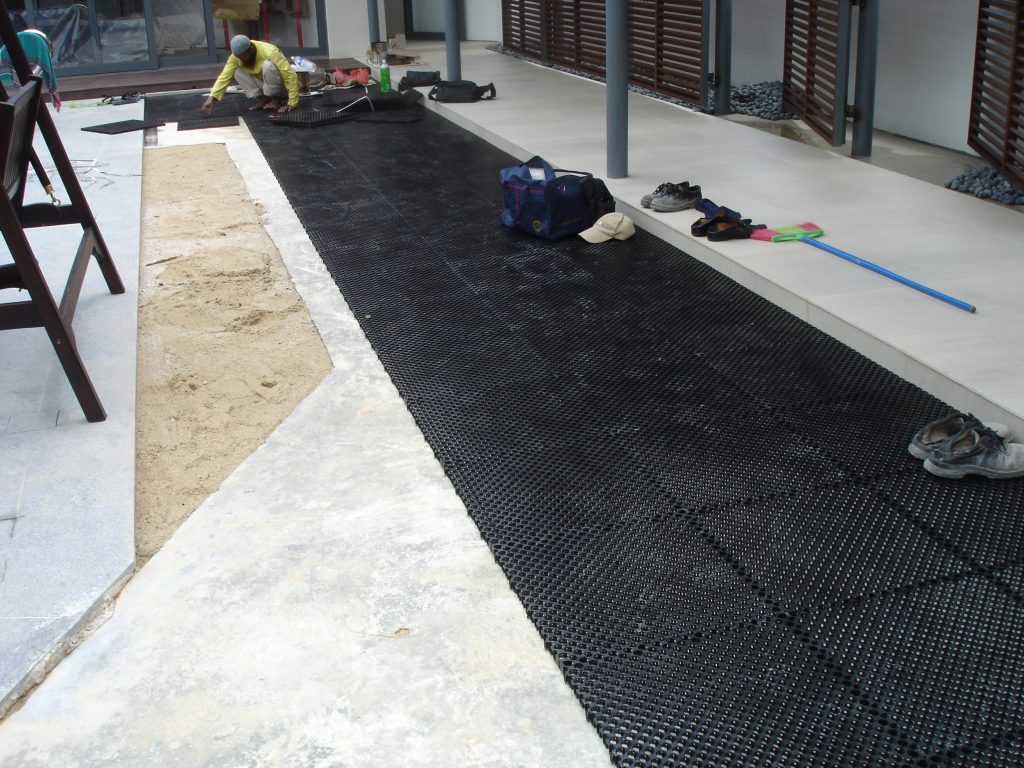

Garden base with sand, geo-textile and VersiCell drainage cells — **Step 1** · Sand, geo-textile & cells laid out

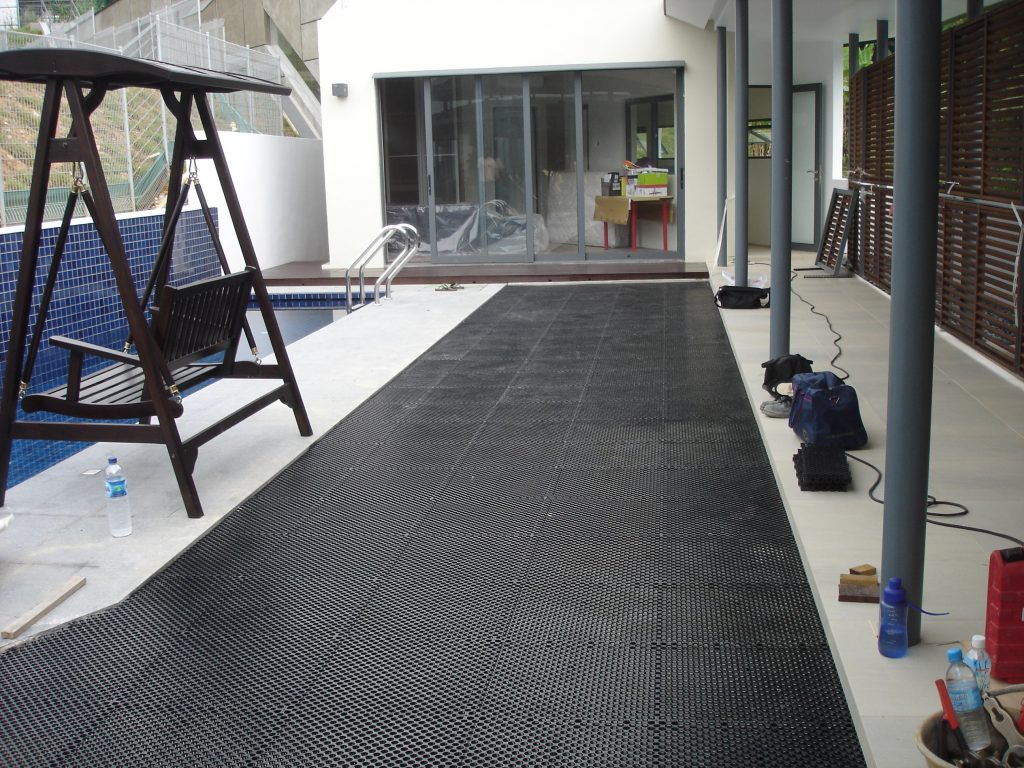

Garden area fully covered with VersiCell drainage cells — **Step 2** · Cells interlocked across the area

VersiCell drainage cells with geo-textile and Namgrass artificial grass on top — **Step 3** · Geo-textile & Namgrass turf on top

Questions

Before you ask.

What are drainage cells used for?

They create a void beneath turf, soil or paving that channels water away fast and keeps the surface level, essential on concrete slabs, podium decks, balconies and roof gardens.

Will drainage cells damage my roof's waterproofing?

No, they protect it. The cells relieve hydrostatic pressure and let water flow freely to outlets, shielding the waterproofing membrane beneath.

How much load can they take?

VersiCell offers a compressive strength of over 80 t/m², strong enough for wheelbarrows and Bobcats during install, yet light enough to carry and lay by hand.

Are drainage cells environmentally friendly?

Yes, they're moulded from recycled plastics and are resistant to biological attack and a wide range of soil-borne chemicals.

See all FAQs

Part of one complete system.

Every ibuild lawn is built and installed by one accountable team, turf, shock pad, drainage and base, and covered by a single 10-year warranty. Explore the other layers:

Artificial grass Shock pads Green walls See our projects
